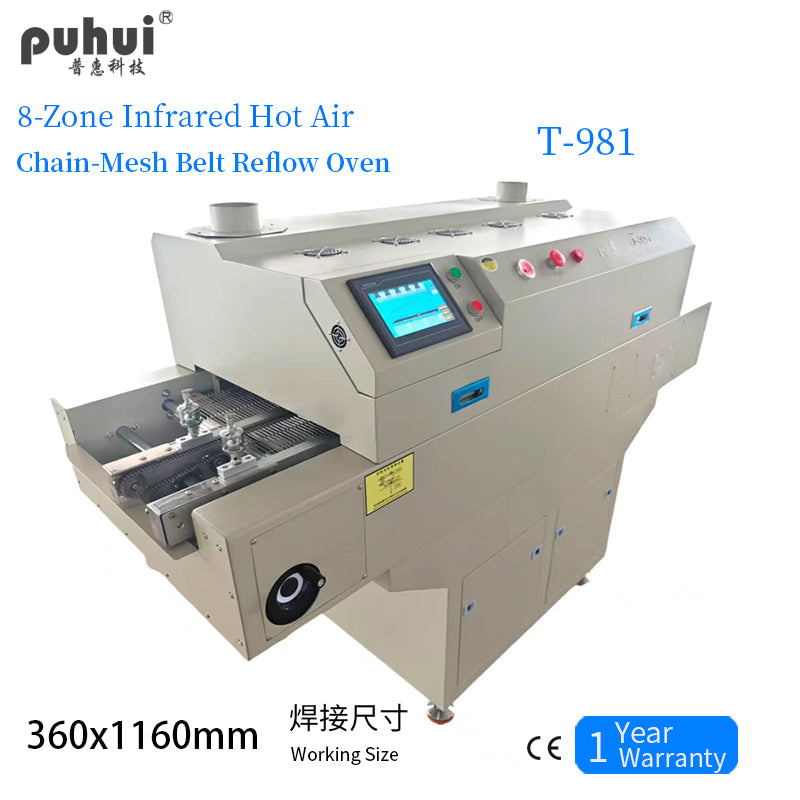

Puhui Chain Mesh Belt Reflow Oven T-981
Puhui Chain Mesh Belt Reflow Oven T-981
Couldn't load pickup availability
Puhui T-981 reflow oven employs IR and Hot air heating technology, uniform temperature distribution,suitable for medium-volume continuous soldering of LED board,strips / single/ double-sided PCBs in all packaging forms such as CHIP, SOP, PLCC, QFP and BGA components etc.
Chain-drive as the main transmission method, supplemented by a stainless steel mesh belt, which is durable, wear-resistant, and operates smoothly with precise speed control up to ±10mm/min.Convenient to build various SMT Production Line due to the design of chain type.
Equipped with a powerful touch screen module that integrates operation, display, monitoring, providing more intuitive displays and simpler operations, facilitating product upgrades.
Puhui Chain Type Reflow Oven T-981
|
Model |
T-981 |
|
The heating zone quantity |
Upper5/down3 |
|
The length of the heating zone |
1160mm |
|
The heating type |
IR and hot air heating |
|
The cooling zone quantity |
1 |
|
Maximum width of PCB |
Chain drive: 350mm |
|
The operation direction |
From left To right |
|
Delivery options |
Chain drive + Mesh belt |
|
The time of PCB soldering |
100-600secs |
|
The power supply |
(220/380V) 50/60Hz |
|
Peak power |
13.2KW |
|
Average power |
7.0KW |
|
Heating up time |
Around 20 min |
|
Temperature control range |
Room temperature～350℃ |
|
Temperature control mode |
PID closed-loop control |
|
Temperature control accuracy |
±1℃(Instantaneous temperature fluctuation) |
|
PCB temperature distribution deviation |
±2℃(Copper coated PCB only) |
|
Overall dimensions |
1940mm×735mm×610mm |
|
Net weight |
195KG |
