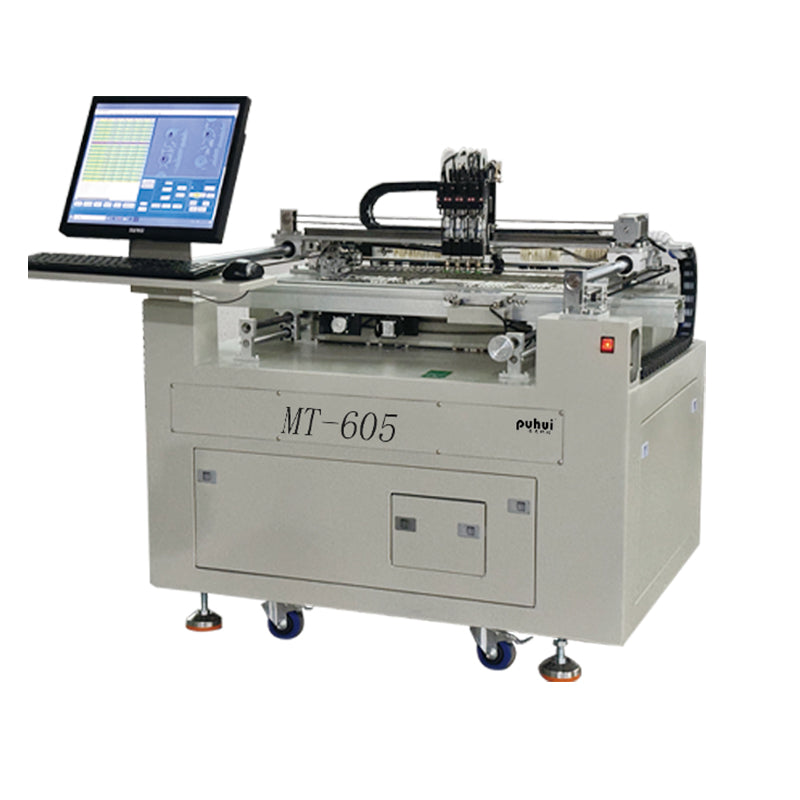

Puhui 4 Heads Pick and Place machine MT-605
Puhui 4 Heads Pick and Place machine MT-605
Couldn't load pickup availability
Self-developed control and feeding system;
Double ball screw + linear slide rail width adjustment structure, ensures the parallelism during the adjustment process;
Uses mute guide rails, widen the belt to ensure SMT precision;
High-definition camera recognition function, precision is assured, movement more fluid;
High-definition camera positioning MARK points ;
Built-in vacuum pump + cylinder adsorption stability;
Components range (0402-1206, SMD transistors, diodes, capacitors, resistors, chip, etc.);
Intelligent & simplified operation.

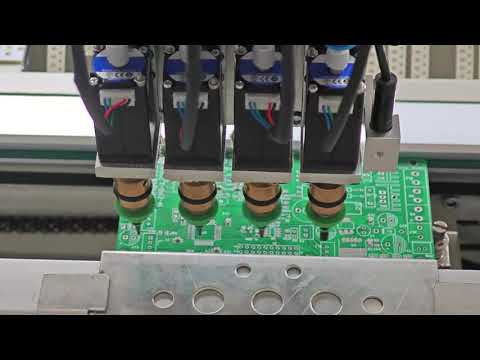

Visual 4-Head Chip Mounter
|
Product Name |
Automatic placement machine |
|
Model |
MT-605 |
|
Placement head |
Four mounting heads |
|
Positioning accuracy |
0.2mm |
|
Product Net Weight |
216kgs |
|
Applicable components |
0402-1206, SMD transistors, diodes, capacitors, resistors, chips, etc. |
|
Number of racks |
42: 8mm=35, 12mm=4, 16mm=2, 24mm=1 |
|
Board size |
240mm×600mm |
|
power supply |
220V, 50/60Hz, 280W |
|
operating system |
Windows operating system |
|
Dimensions |
1100*1090*900(length×width×height) |
|
Camera |
5 |
|
Fault Detection |
Leakage detection |
