Puhui Electric Technology
PCB Preheating Plate T-8120 With 120*120mm Work Size
PCB Preheating Plate T-8120 With 120*120mm Work Size
Regular price
$70.00 USD
Regular price
$80.00 USD
Sale price
$70.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
T-8120 is a small volume PCB heating oven. With infrared component to give off heat which is independent technology, Adopts advanced PID intelligent temperature techbology, controls temperature precisely.Can preheat PCB efficiency.It’s an economial ,higher cost effective BGA rework staion .
View full details

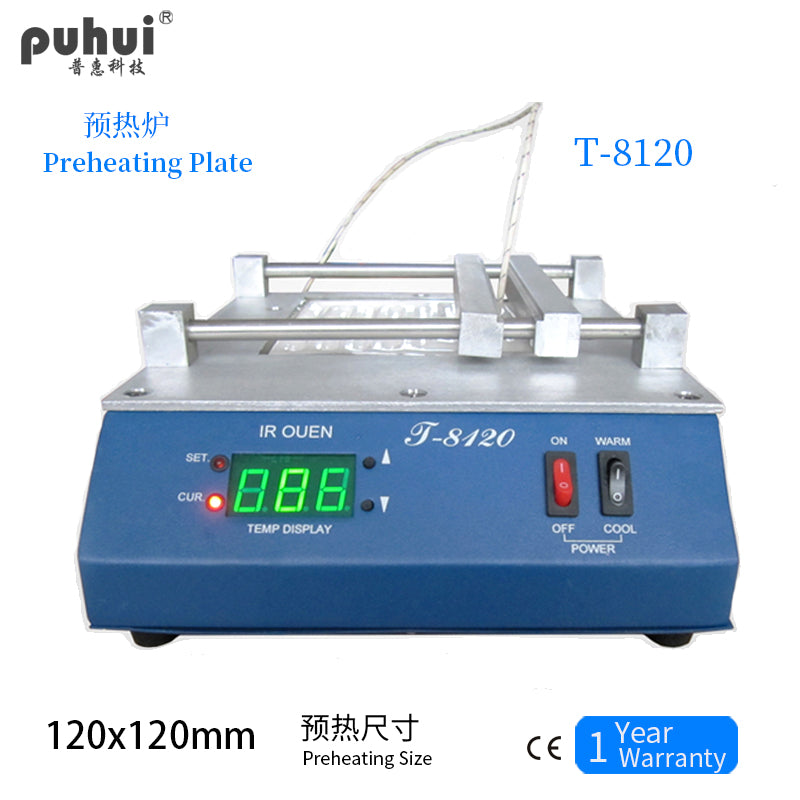

Mini PCB Preheating Oven T-8120
Features：
1. The machine selects the infrared highly effective component to give off heat which independent exploration, adopts advanced PID intelligent controling heating technology, controls warm precisely.2. Can achieve to heat PCB board and component which contains lead or not,especially suits to BGA,SMD.
3. Use infrared heat, easy to cut through, heat evenly, don’t have hot air flow. Don’t shift the nontarget small components on the PCB board,ensure the welding quality.
4. T-8120 has 600W heating system, widely to 120x120mm preheating size.

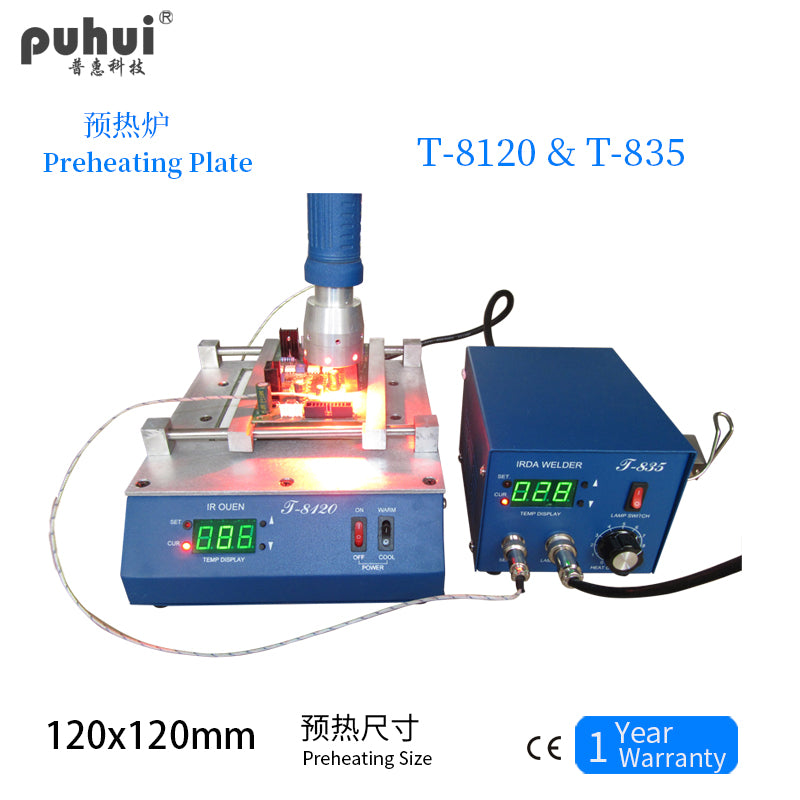

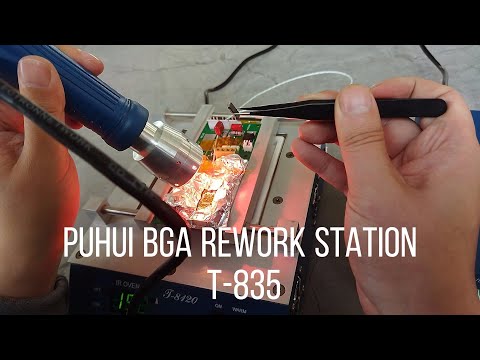

Can work with the handhold infrared welder T-835.
5. Easily operate, can operate it through easy training.
5. Easily operate, can operate it through easy training.
Main Parameters：
|
Work bench size |
200x240mm |
|
Rated voltage and frequency |
AC220-230V/AC110V 60/50Hz |
|
Complete machine power |
500W |
|
Preheating chassis power |
450W |
|
Preheating chassis size |
120x120mm |
|
Temperature adjustable range |
0-450℃ |
Main Parts：
|
Preheating oven main body |
1 |
|
Temperature sensor |
1 |
|
Board support of the circuit |
1 |
|
Power line |
1 |
|
User manual (USB flash disc) |
1 |
