Infrared Hot Air Reflow Oven T-937M

Infrared Hot Air Reflow Oven T-937M

Regular price $580.00 USD
Regular price $600.00 USD Sale price $580.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

Infrared Reflow Oven T-937M solder leadfree paste very well. Adopt stable and high-speed MCU and advanced intelligent temperature measurement technology, temperature in the oven is very stable,exact and even.

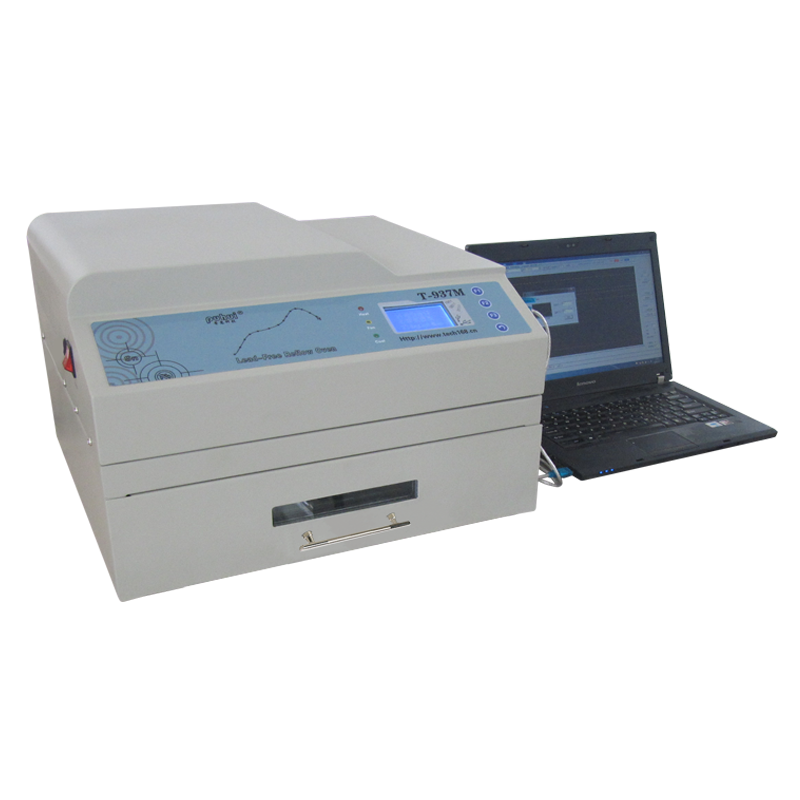

1.This oven can connect with PC, easy to input/set/transmit/adjust/save/manage curve data.
2.Kinds of
curves input style in control software, easy to set .
3.The control software is with graphical display, display the curve intuitively.
Also with printing function, easy to save/manage/analysis the curve data.
4.The control software is with 299 kinds of paste data inside.
5.Adds the compensation circuit, make the oven temperature keep stable from different environment.
6. Hot air fan inside, to make the temperature inside more even.
7.The temperature range is from room temp to 350℃, suit for single/double-sided PCB board and lead/leadfree paste soldering.
8.Adds special exhaust on the back, provides good operation environment.
9.Friendly human-machine operation interface, perfect LCD display, very easy to operate.
10.Good database management function.
11.Thermostatic timer function.

View full details

Lead-free reflow oven T-937M

Para.

T937

T937M

Drawer area

306 mm×322mm

350mm×400mm



Soldering area

Lead_Free Welding

260mm×260mm

290×375mm

Lead Welding

300mm×310mm

315mm×375mm

Dimension

404mm×372mm×280mm

473mm×466mm×290mm

N. Weight

15.5kg

20.7kg

Voltage/Frequency

AC220~230V/50Hz

AC220~230V/50Hz

AC110V/60Hz

AC110V/60Hz

Power rating

2300W

3300W

Cycle time

2~16 min

2~16 min

Temp range

Room temp~350℃

Room temp~350℃



Name

T937

T937M

Reflow oven

Power line

×

Fuse

√(15A)

√(20A)

√(25A)/110V

√(32A)/110V

USB FLASH Dis

COM communication line
