Hand-held BGA Rework Station Ir Welder T-835

Hand-held BGA Rework Station Ir Welder T-835

Regular price $180.00 USD
Regular price $190.00 USD Sale price $180.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

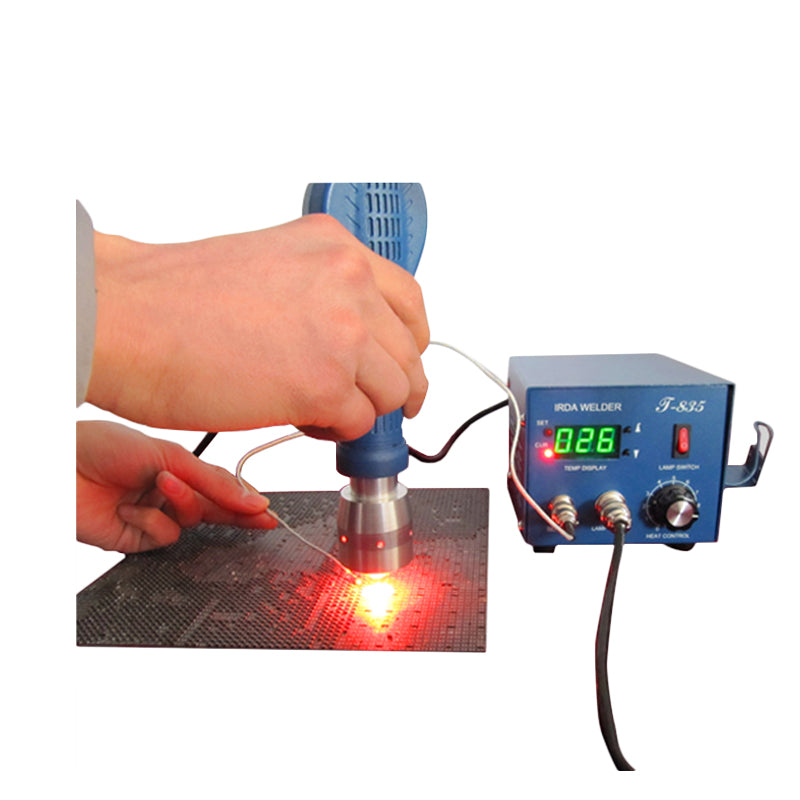

BGA Rework Station T-835 Adopts hand-held lamp structure with flexible operation and easy control. Suitable for any angle of  flat components, especially BGA, SMD components desoldering.

View full details

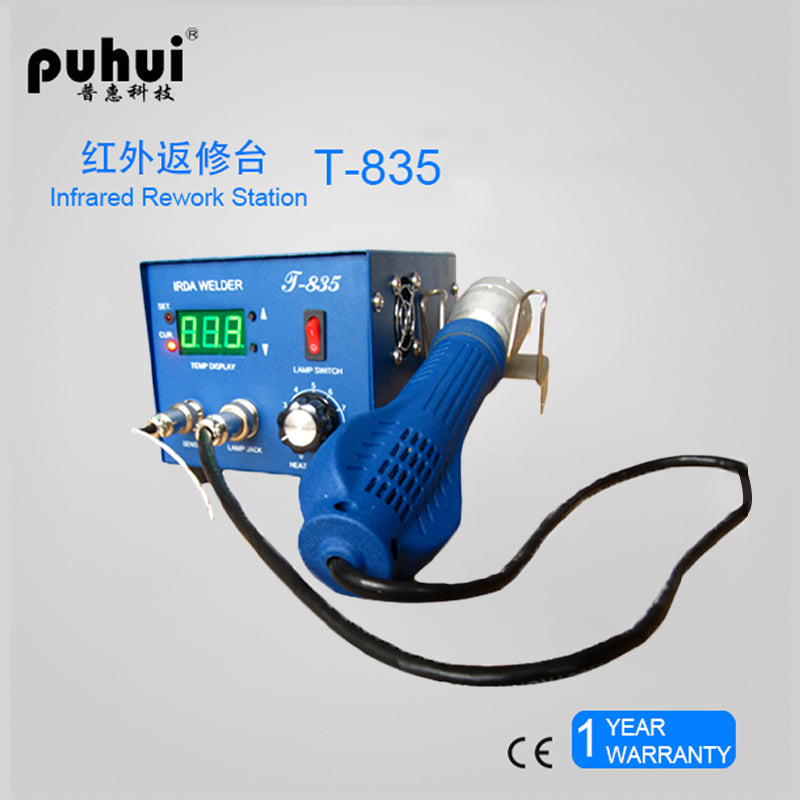

Infrared BGA Rework Station T-835

Features

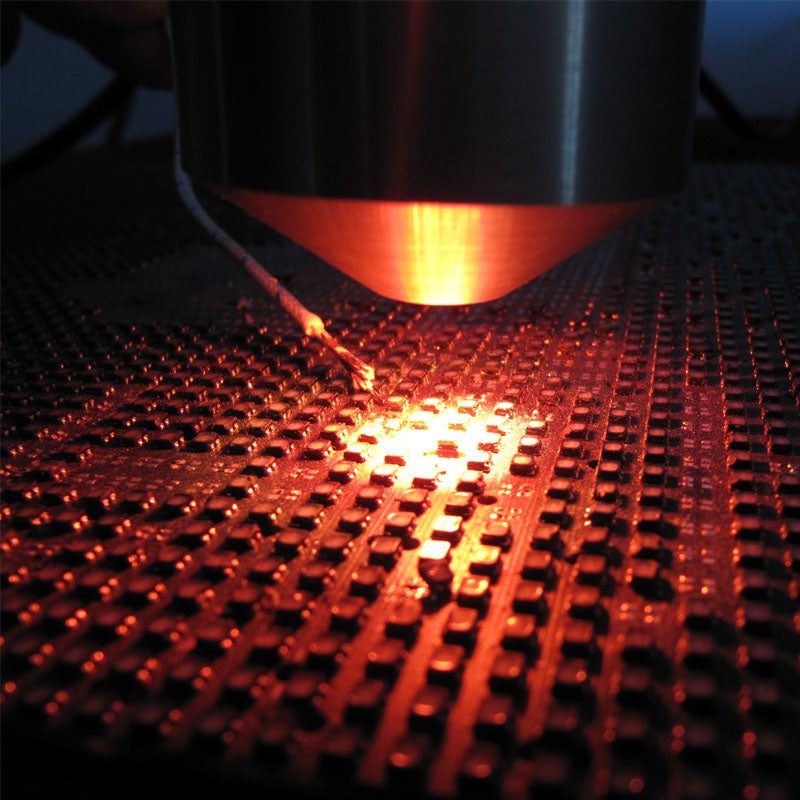

  • Use infrared heat lamp. Heat is easy to pierce and distribute evenly, which overcomes disadvantages (burn out elements) of traditional welder  machines..

  • Infrared heating doesn't have air flow. Don't impact circumjacent small elements. It is suitable for all of the  flat elements. It can be used to unsolder BGA, SMD, CSP, LGA, QFP and PLCC, especially Micro BGA and SMD elements.

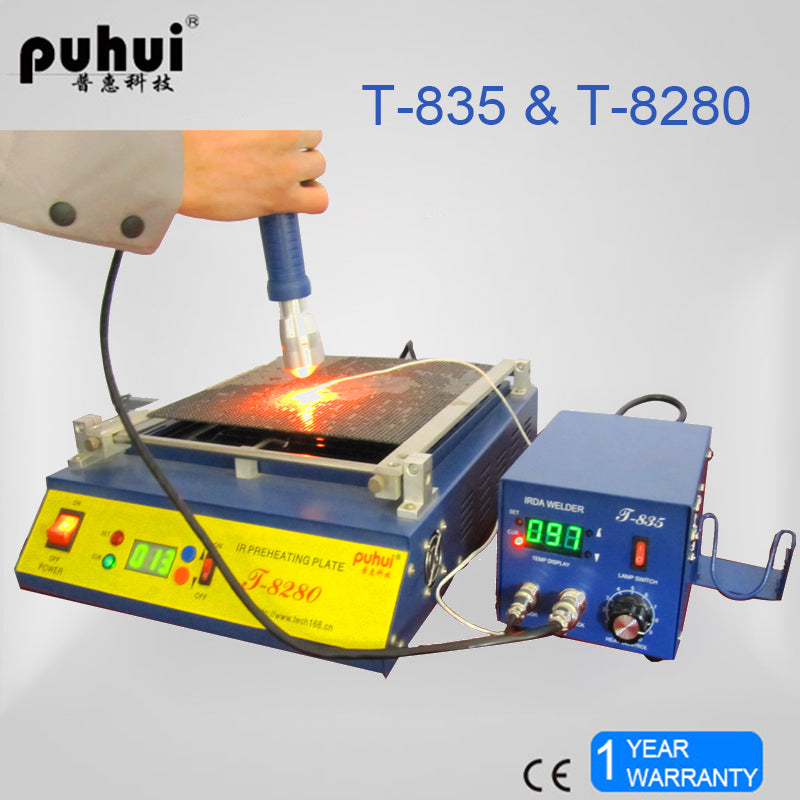

  • T835 works with preheating oven T-8120/T-8280, which can repair all kinds of needle-socket (such as CPU socket and inserted row GAP).

  • Easy operation. Just need one-day training, you can operate it skillfully.

Technical parameter

Rated voltage and frequency

AC220v/AC110v/50-60Hz

Complete machine power

300W

Infra-red lamp power

100W

Infra-red lamp heating size

Φ35mm

Adjustable temperature of Infra-red lamp

0℃-350℃



Main Parts

Name

Model

Quantity

Welding table

T-835

1

Infra-red lamp



1

Temperature sensor

 K-degree

1

Infra-red lamp holder



1

Power cable

0.75x1.8m

1

USB Flash Disk



1
