Chips Preheating Plate T-8280 With 280*270mm Work Size

Chips Preheating Plate T-8280 With 280*270mm Work Size

$140.00 USD
$130.00 USD $140.00 USD
In offerta Esaurito
Spese di spedizione calcolate al check-out.
Voltage

T-8280 is a large PCB heating oven. Utilize infrared heating to give off heat which developed independently. Adopts advanced PID intelligent temperature technology, controls temperature precisely.Can preheat PCB efficiently,quickly.It’s an economial ,higher cost effective BGA rework staion .

Visualizza dettagli completi

Large Size Preheating Plate T-8280

Products Features:

1.This machine is with infrared component to give off heat which independent exploration, adopts advanced PID intelligent temperature tech, controls temperature precisely.

2. T-8280 can heat PCB board and component which contain lead or not，especially BGA and SMD parts.

3.Ceramic heating, easy to penerate, heat proportionly, don’t have hot air flow. Won’t shift the small components on the PCB board，ensure the welding quality.

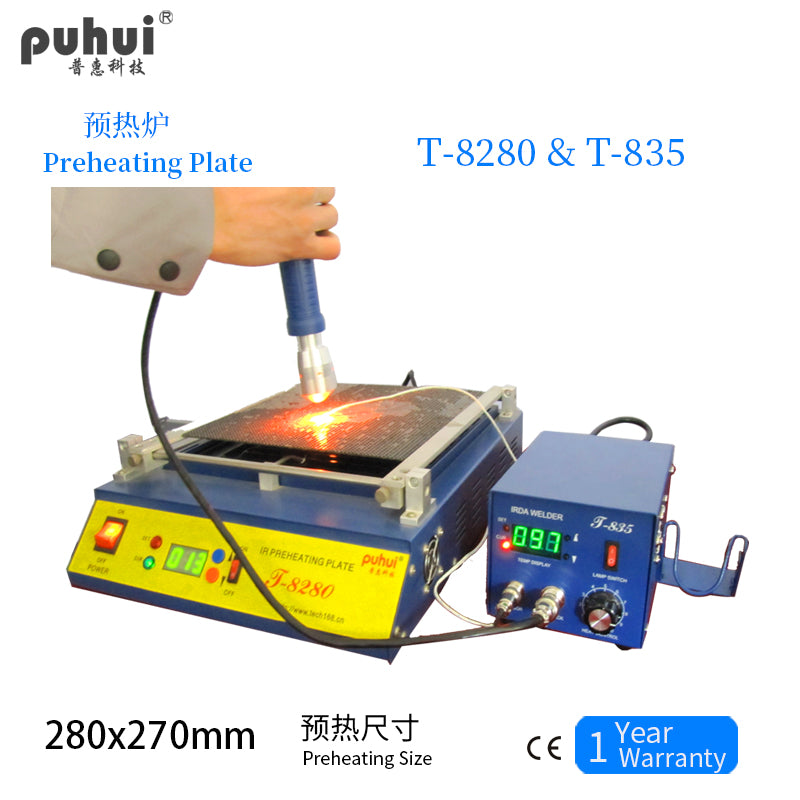

4.This machine is with 1500W heating system, heating area 280x270mm.Suggest work together with the handhold infrared welder T-835.

5.Easy operate, you can operate it after simple training.

Technical Parameter

Work bench size

410x316mm

Rated voltage and frequency

AC220-230v/AC110V   60/50Hz

Complete machine power

1600W

Preheating plate power

1500W

Preheating plate size

280x270mm

Preheating plate temperature adjustable

0-450℃

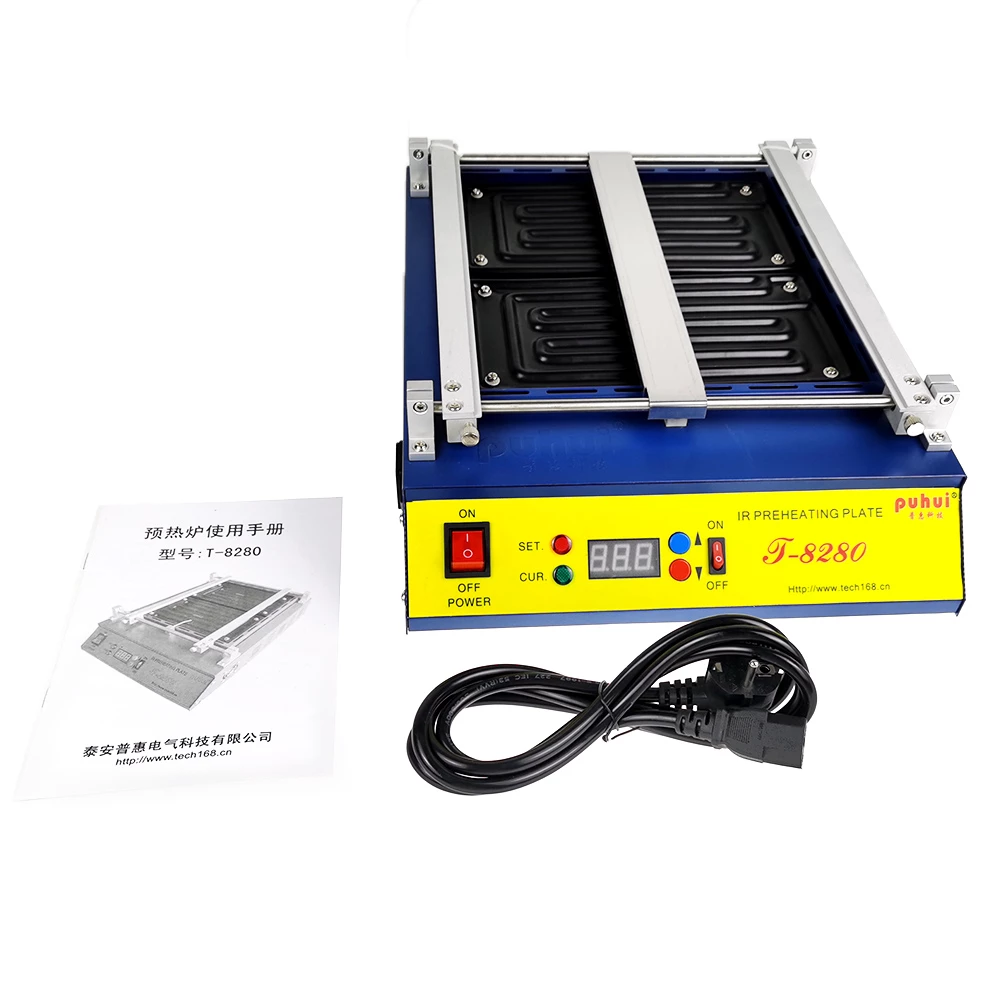

Main Components:

Preheating plate main body

1

Temperature sensor

1

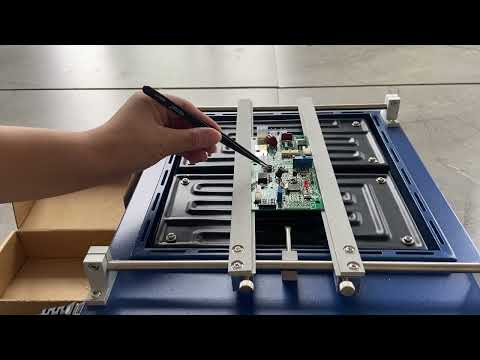

PCB board holder

1

Power line

1

User manual (USB flash disk)

1
