BGA Rework Station T-862 for components chips ≤25mm desolder

BGA Rework Station T-862 for components chips ≤25mm desolder

Prix habituel $180.00 USD
Prix habituel $180.00 USD Prix soldé $180.00 USD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Voltage

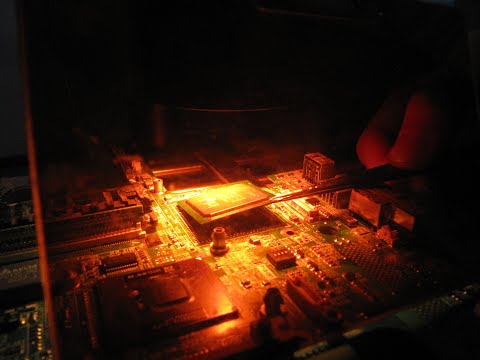

Infrared heating without air flow. Won't impact perimeter small components.

Can desolder all of the SMD components,especially Micro BGA components.

Repair chips size

15x15-25x25 mm

Rated voltage and frequency

AC220V/AC110V   60/50Hz

Complete machine power

600W

Range of IR Temp

100-350℃

Range of 936 Iron Temp

200-450℃

Preheating plate size

120x80mm

Range of Preheating plate Temp

60-200℃

Afficher tous les détails

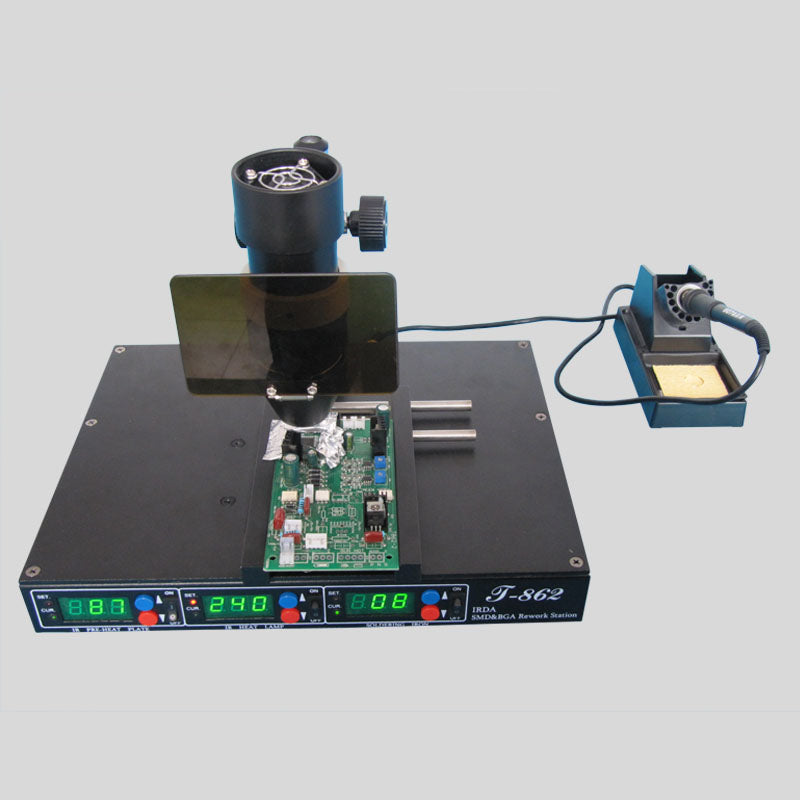

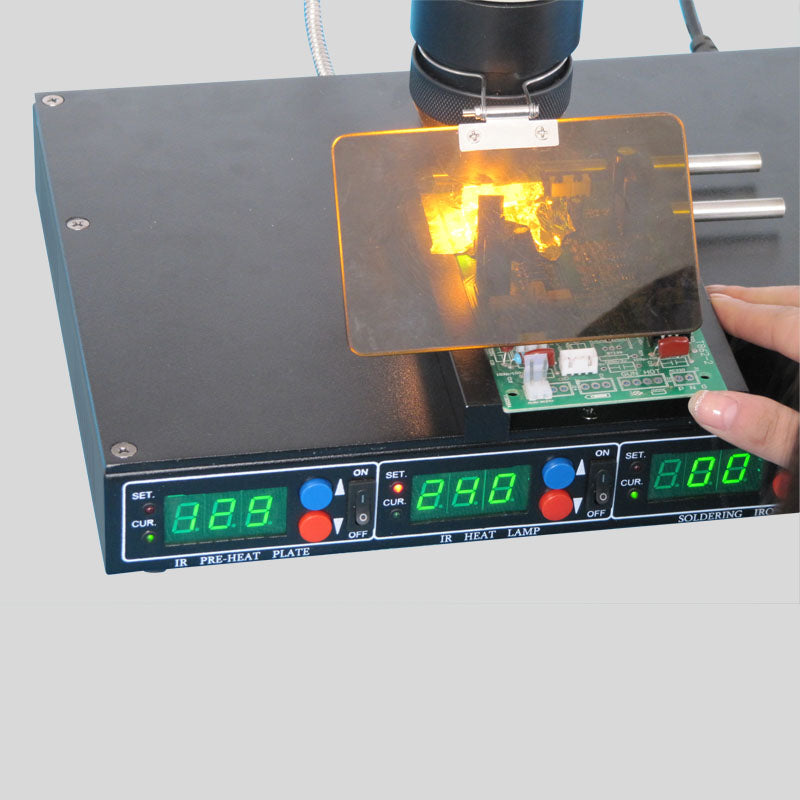

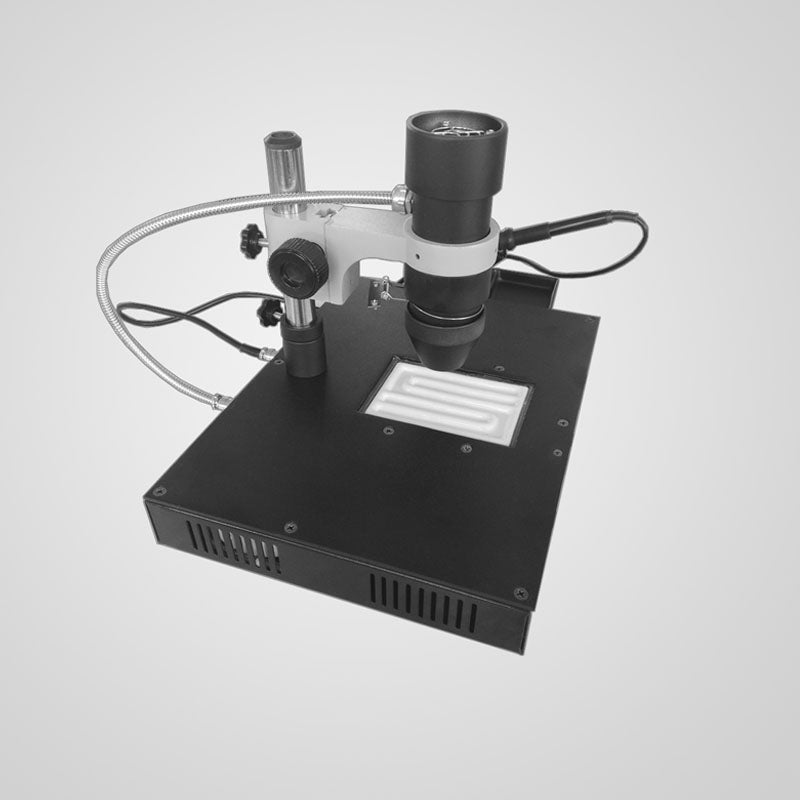

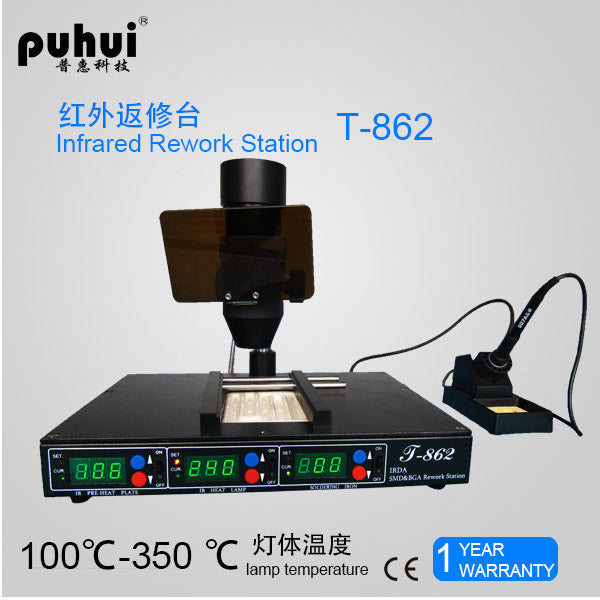

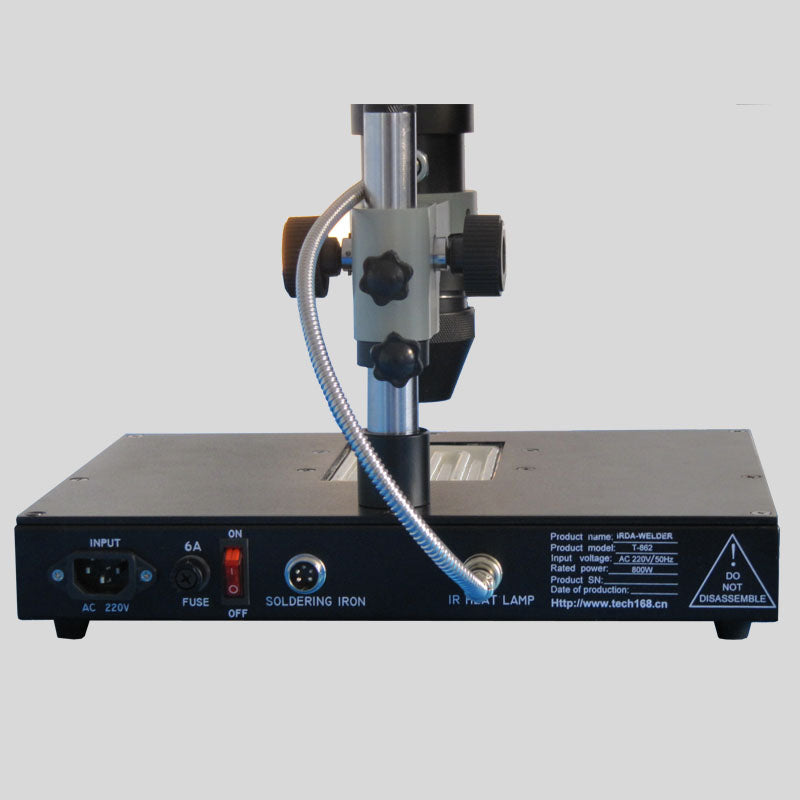

BGA Rework Station T-862



Features

  • Use infrared welding technology which is developed independently.
  • Upper infrared heat lamp. Heat is easy to pierce and distribute evenly, which overcome disadvantage (burn out elements) of traditional welding machines.
  • Easy operation.  Just one-day training and you can operate it

skillfully.

  •  IRDA Welder T-862 can unsolder all the elements between 15 and 25 mm.
  • 350W hot-melt system. Its preheating area is 80x120mm.
Main Parts

Description

Quantity

Welder base

1

Guide rod

1

Locating ring

1

Lamp assy

1

Circuit Board(PCB) support

1

Power Cable

1

Soldering iron

1

Soldering iron support

1

User Manual

1
