BGA Rework Station T-862++ for components chips ≤35mm desolder
BGA Rework Station T-862++ for components chips ≤35mm desolder
Prix habituel
$200.00 USD
Prix habituel
$230.00 USD
Prix soldé
$200.00 USD
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait

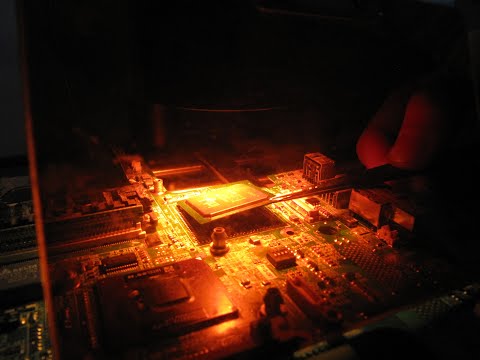

Infrared heating without air flow. Won't impact perimeter small components.
Can desolder all of the SMD components,especially Micro BGA components.
Repair chips size |
15x15-35x35 mm |
Rated voltage and frequency |
AC220V/AC110V 60/50Hz |
Complete machine power |
800W |
Range of IR Temp |
100-350℃ |
Range of 936 Iron Temp |
200-450℃ |
Preheating plate size |
120x120mm |
Range of Preheating plate Temp |
60-200℃ |

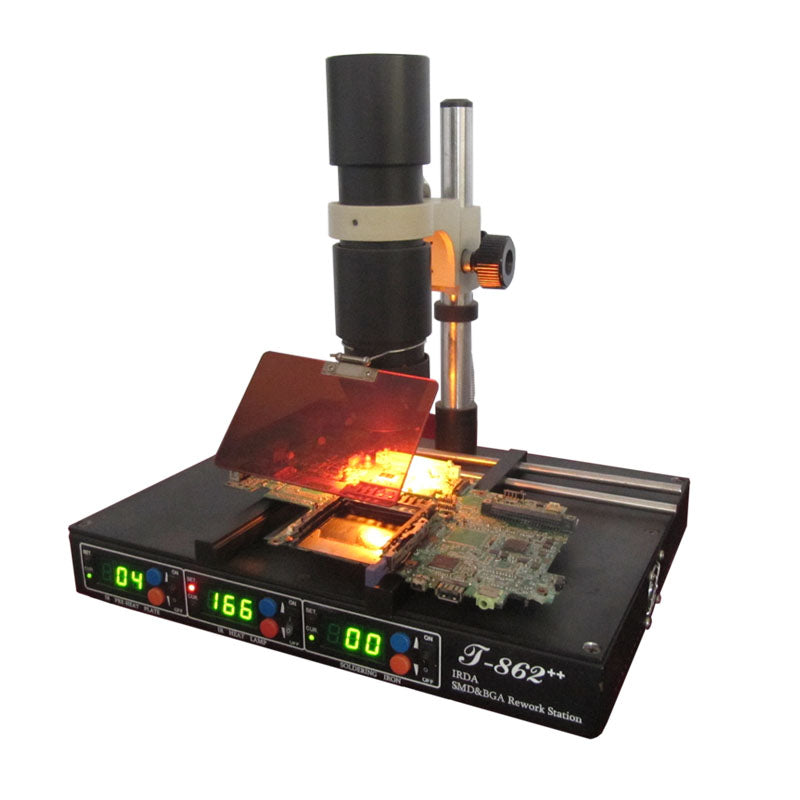

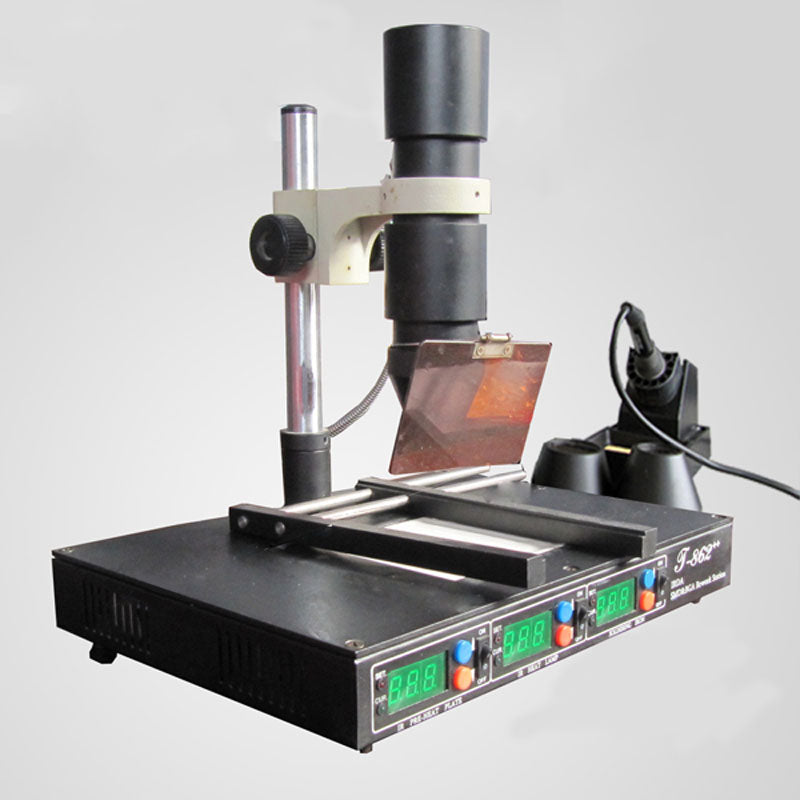

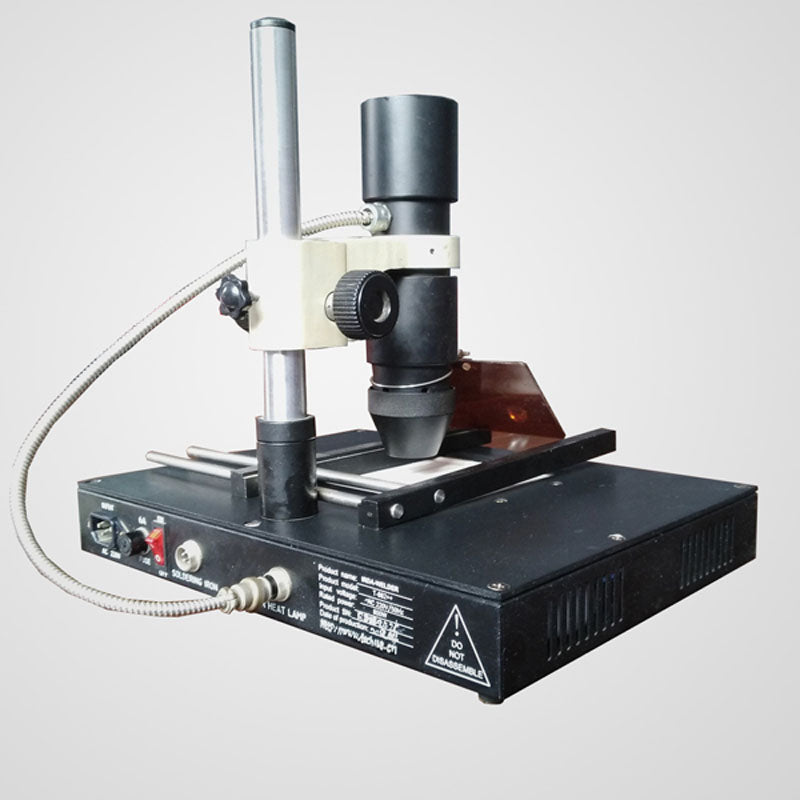

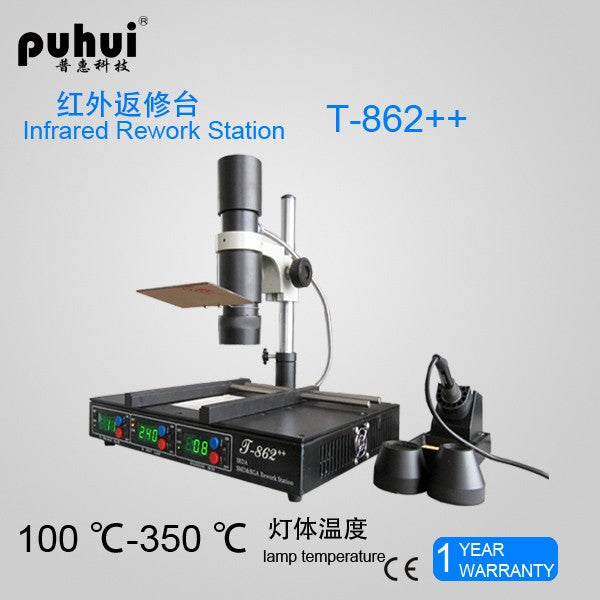

BGA Rework Station T-862++
Features
- Use infrared welding technology which is developed independently.

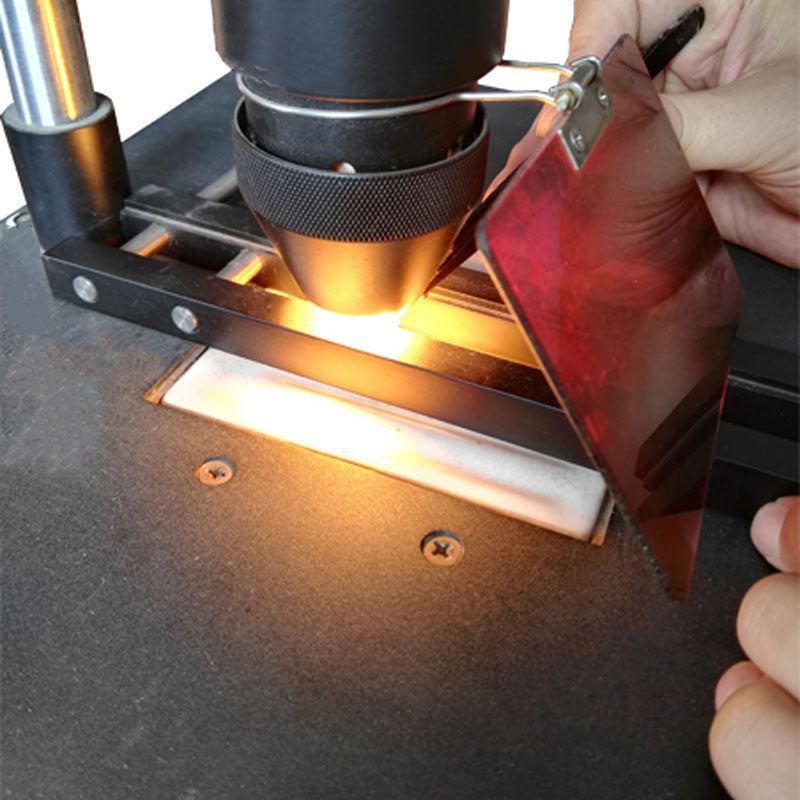

- Upper infrared heat lamp. Heat is easy to pierce and distribute evenly, which overcome disadvantage (burn out elements) of traditional welding machines.
- Easy operation. Just one-day training and you can operate it
skillfully.
- IRDA Welder T-862++ can unsolder all the elements between 15 and 35 mm.
- 600W hot-melt system. Its preheating area is 120x120mm.
|
Description |
Quantity |
|
T-862++ Chassis |
1 |
|
PCB Board holder |
1 |
|
936 Searing-iron |
1 |
|
936 searing-iron rack |
1 |
|
Lamp Body and Lens(D=28mm) |
1 |
|
Lens(D=38mm) |
1 |
|
Lens(D=48mm) |
1 |
|
Eye protection(IR Filter) |
1 |
|
Cell guide |
1 |
|
Focus holder |
1 |
|
Focus holder control knob |
1 |
|
Fasten nut for focus holder |
1 |
|
Steady ring |
1 |
|
Fasten nut for steady ring |
1 |
|
Power Cable (110VAC or 200VAC) |
1 |
|
5mm Fuse, 10A 250VAC （Spare) |
1 |
|
USB Flash Disk |
1 |
Issues About Freight Fees
You can make your own claim of how to forward the paid items like self-pick up, or we can serve with basic methods:
1 Sea Freight
2 Fedex
Please contact us through E-mail, or click the bottom-right button "chat with us".
