3040 High Precision Printer
3040 High Precision Printer
No se pudo cargar la disponibilidad de retiro

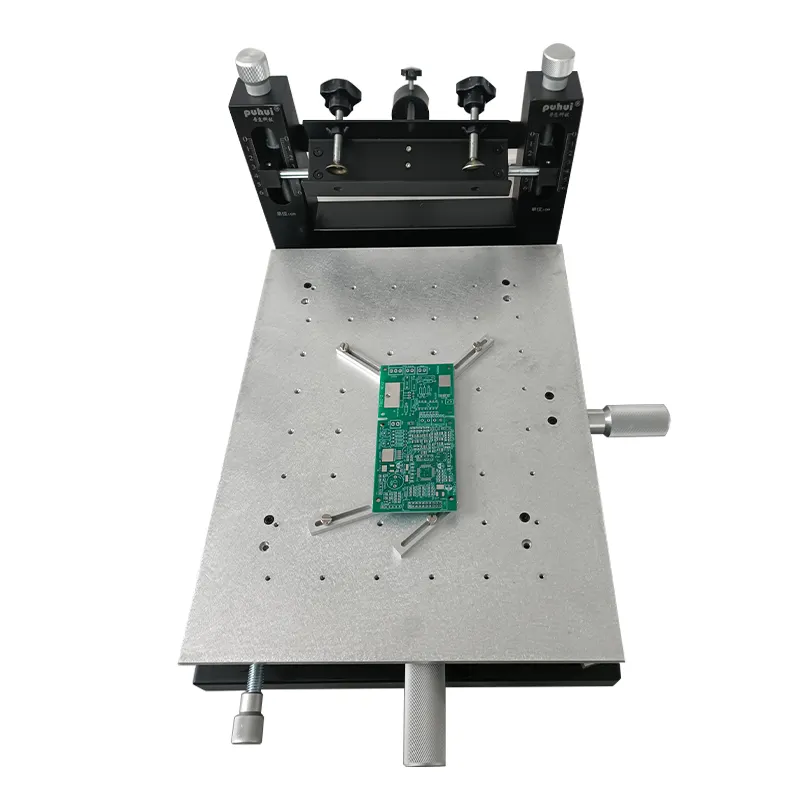

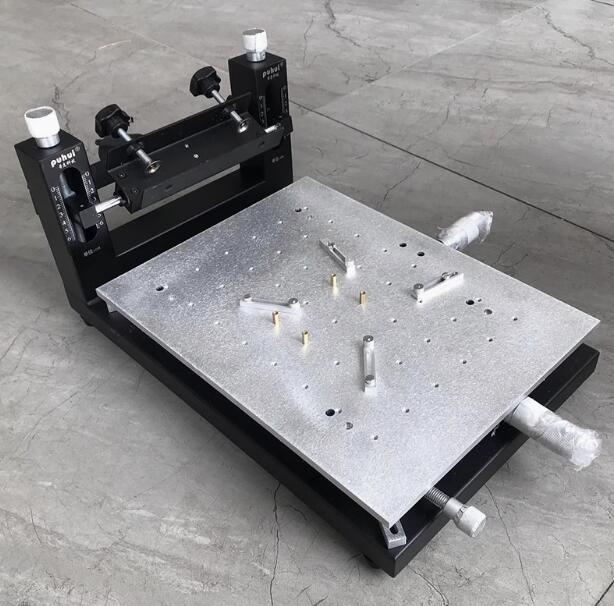

3040 Screen Printing Machine
SMT steel mesh screen printing High precision Solder Paste Printer Machine
| 1.Upper and lower adjusting handle | 7.Y-axis adjusting handle |
| 2.Stencil bracket | 8.Swing adjusting handle |
| 3.Embossing star knob | 9.Support pin |
| 4.Platform | 10.Platform support base block |
| 5.PCB fixation unit | 11.PCB position block |
| 6.X-axis adjusting handle |
Application:
The printer is one type of supporting devices in SMT electronic mounting welding process .Which is used to pre-prepare solder paste on the pads of PCB when quantity of soldering PCBs needed is relatively fewer . So as to facilitate the mounting of patch components in the next step.
Features:
The platform can be rotated 30 degrees at most, and the precision can be kept all the way when repeat works. Easy to locate PCB board, high flexibility ensure high printing precision.The brackets using the bolt bar to adjust the height, convenient for controlling the thickness of PCB.
|
High Precision Printer |
Parameters |
|
Overall Dimensions（L*W*H) |
580*320*259(mm） |
|
Platform Size |
300*400（mm） |
|
PCB Size |
270*370（mm） |
|
Stencil Size |
370*470（mm） |
|
Platform Height |
180mm |
|
PCB Positioning Mode |
Outside/ Reference Hole |
|
Weight |
12.7kg |
