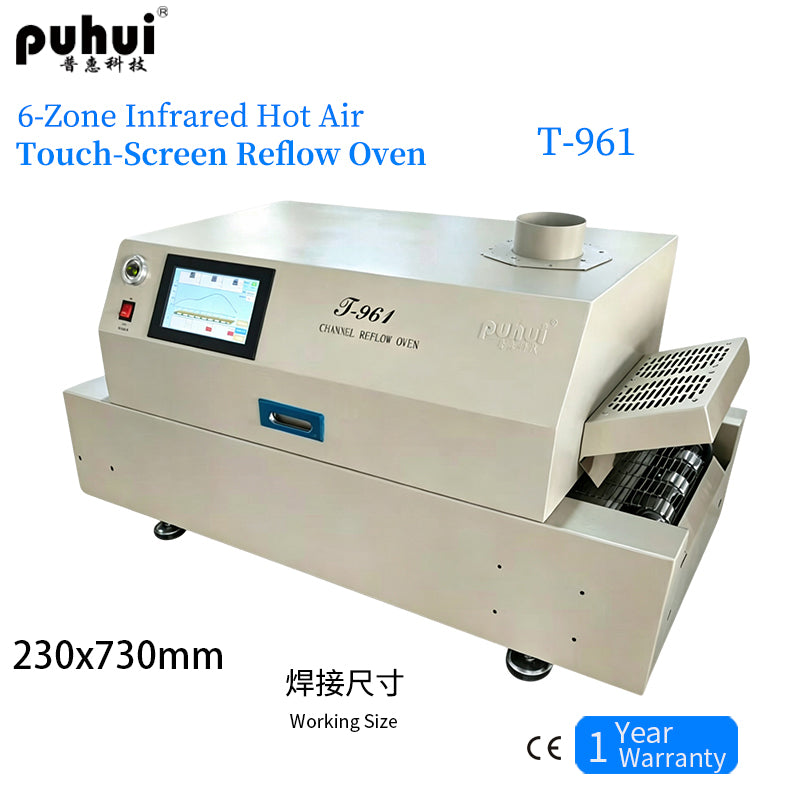

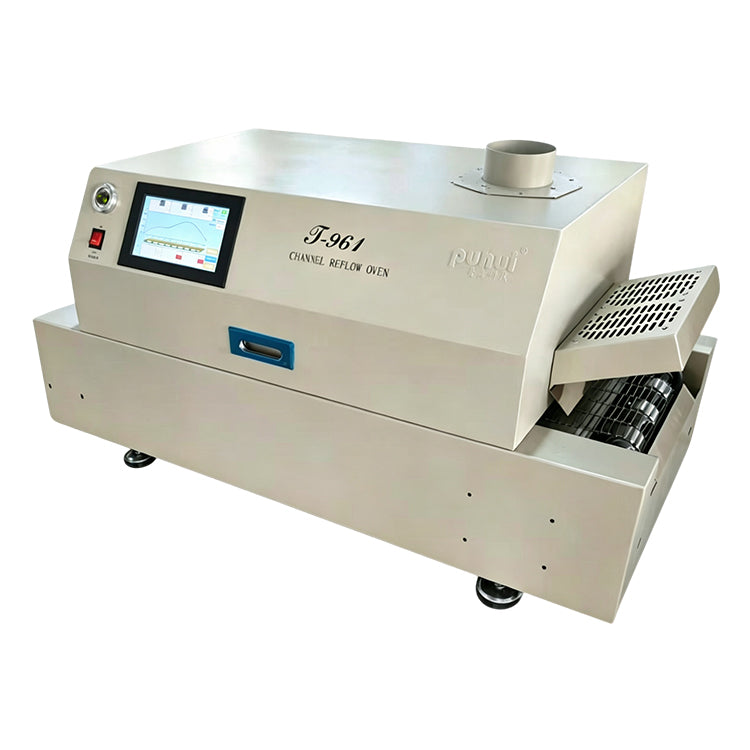

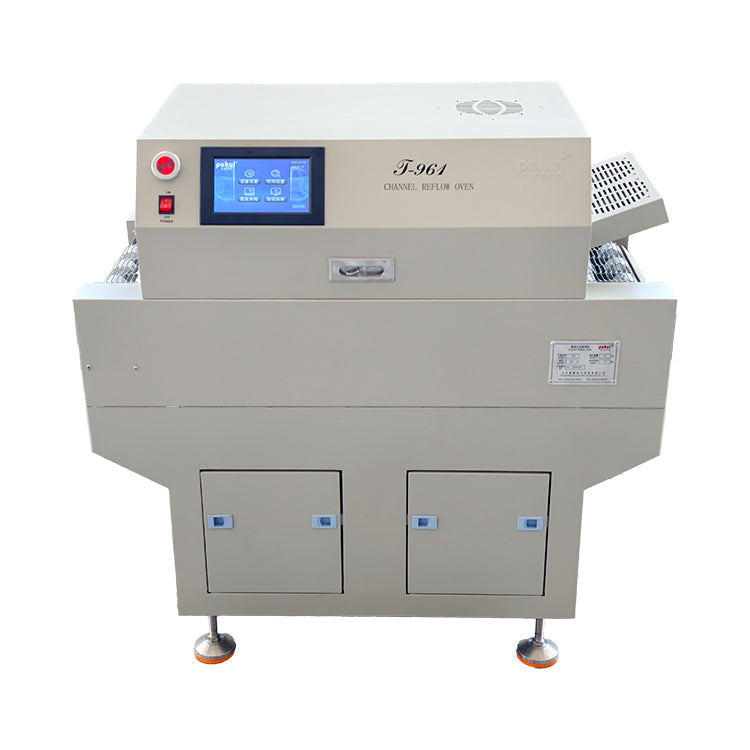

Puhui New Touch Screen Conveyor Reflow Oven T-961

1.Adopts IR and hot air heating technology, equipped with specially designed convection fans that ensures stable air flow and uniform temperature distribution,suitable for medium-volume continuous soldering of LED board, PCBs in all packaging forms such as CHIP, SOP, PLCC, QFP and BGA components etc.

2.Equipped with 6 heating-zone heating system, independent circulation, PID control and up-down heating type, ensures accurate and uniform temperature distribution in the furnace chamber. With high thermal capacity and rapid heating speed.

3. Intelligent curve heating method with a large capacity for curve selection, equipped with 8 tech curves to fully meet the requirements of various soldering processes.

4.The programmable control tech with preset curve memory storage function, allowing the machine to automatically complete the entire soldering process based on users predefined curves.

5.Thermal couples for temperature measurement , compensation circuit added for more accurate temperature readings, more perfect curves.

6.PID intelligent temperature control tech ensures precise temperature control. High-quality large current solid-state relay with no-contact output effectively prevents rapid or continuous heating that could damage chips or circuit boards, making the entire soldering process more scientific and safe.

7. The transmission system is driven by a stepper motor, ensuring smooth operation.

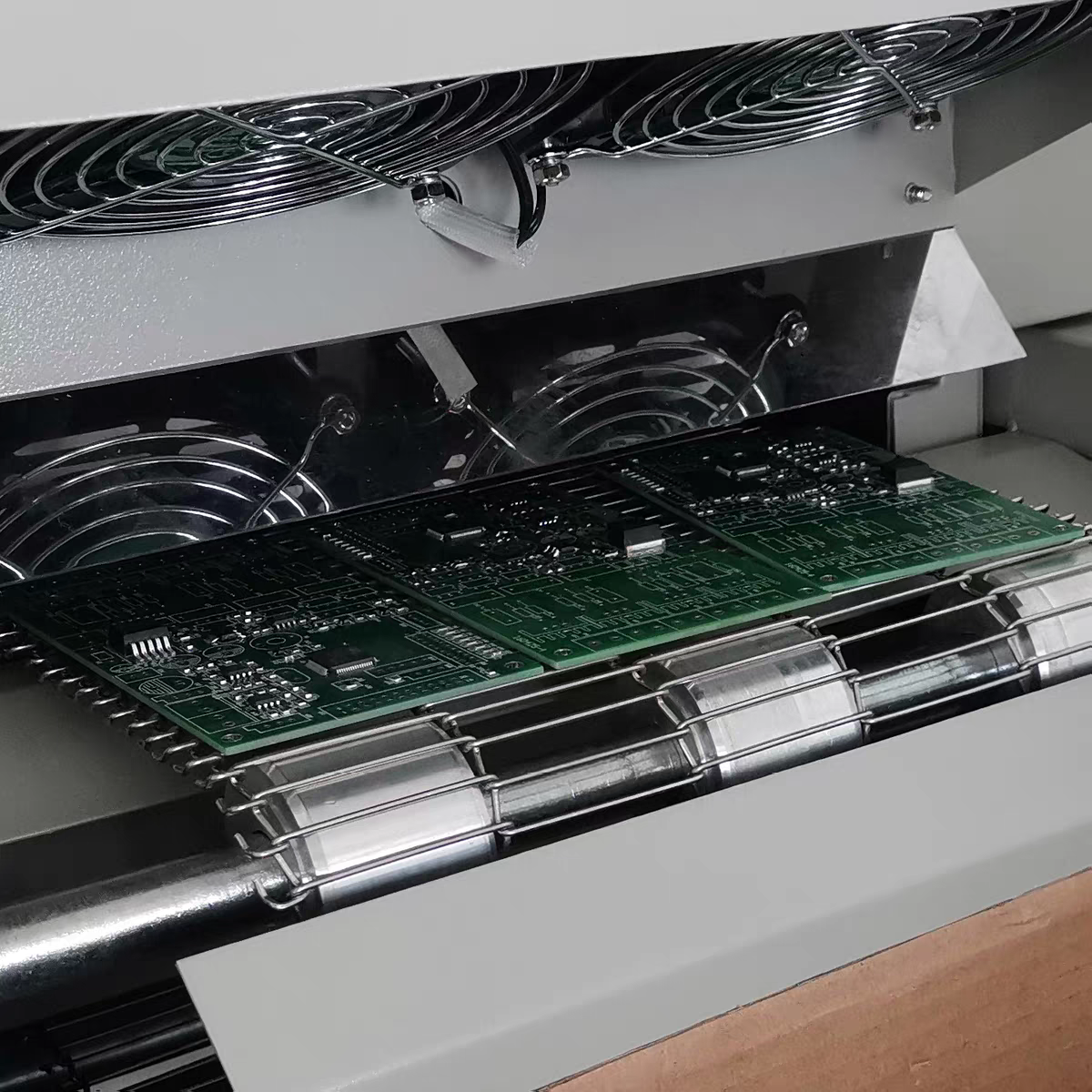

8. Adopts an independent roller structure and flat support,with dedicated stainless steel I-shaped mesh belt, enables speed control up to ±10mm/min.

9. Independent cooling zone ensures the low temperature required when the PCB board exits the machine.

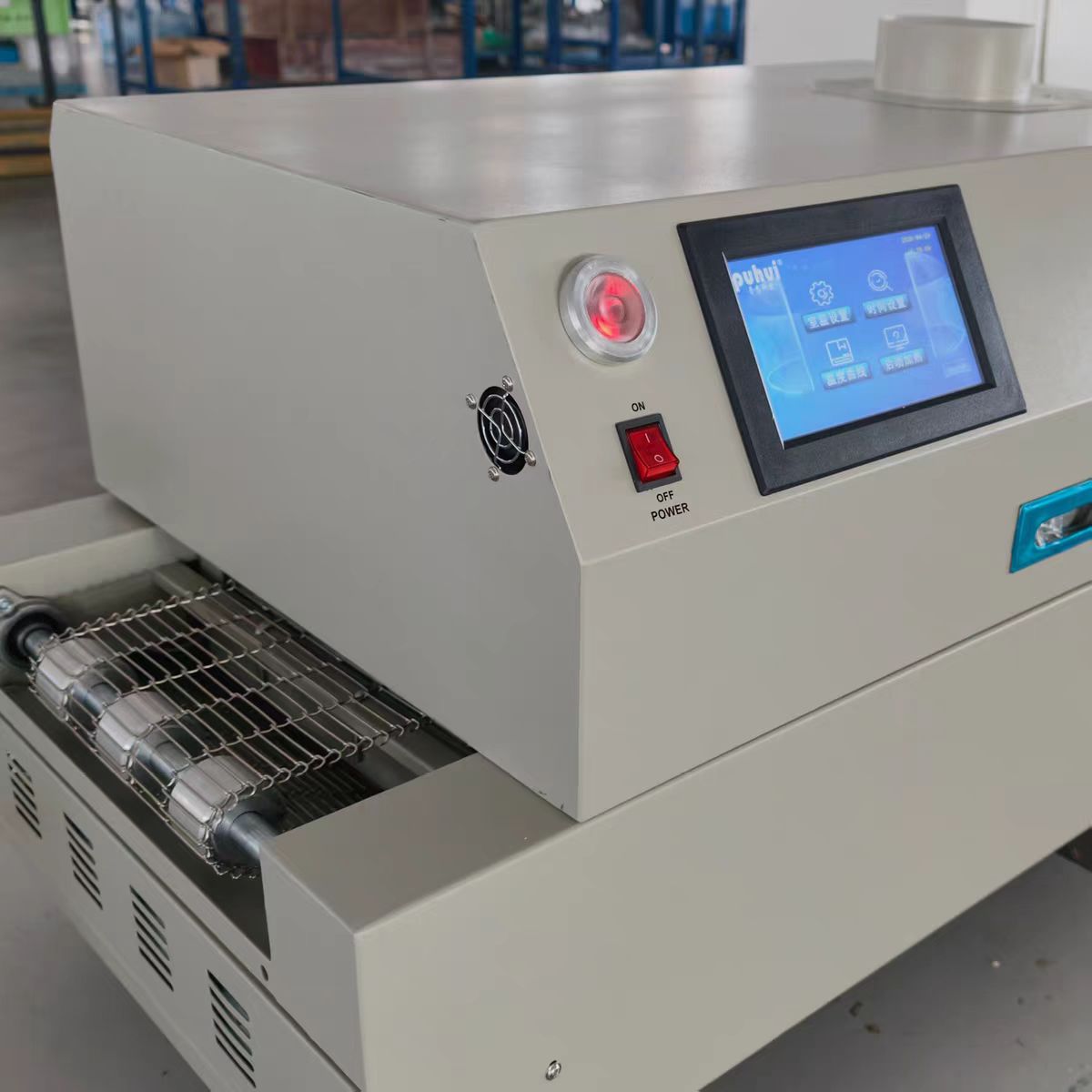

10. The powerful touch screen module that integrates operation,display, monitoring, providing intuitive displays and simpler operations, facilitating product upgrades.

11. Ergonomic design, practical and easily operated. Good build quality. Technology - based concept is constant.
